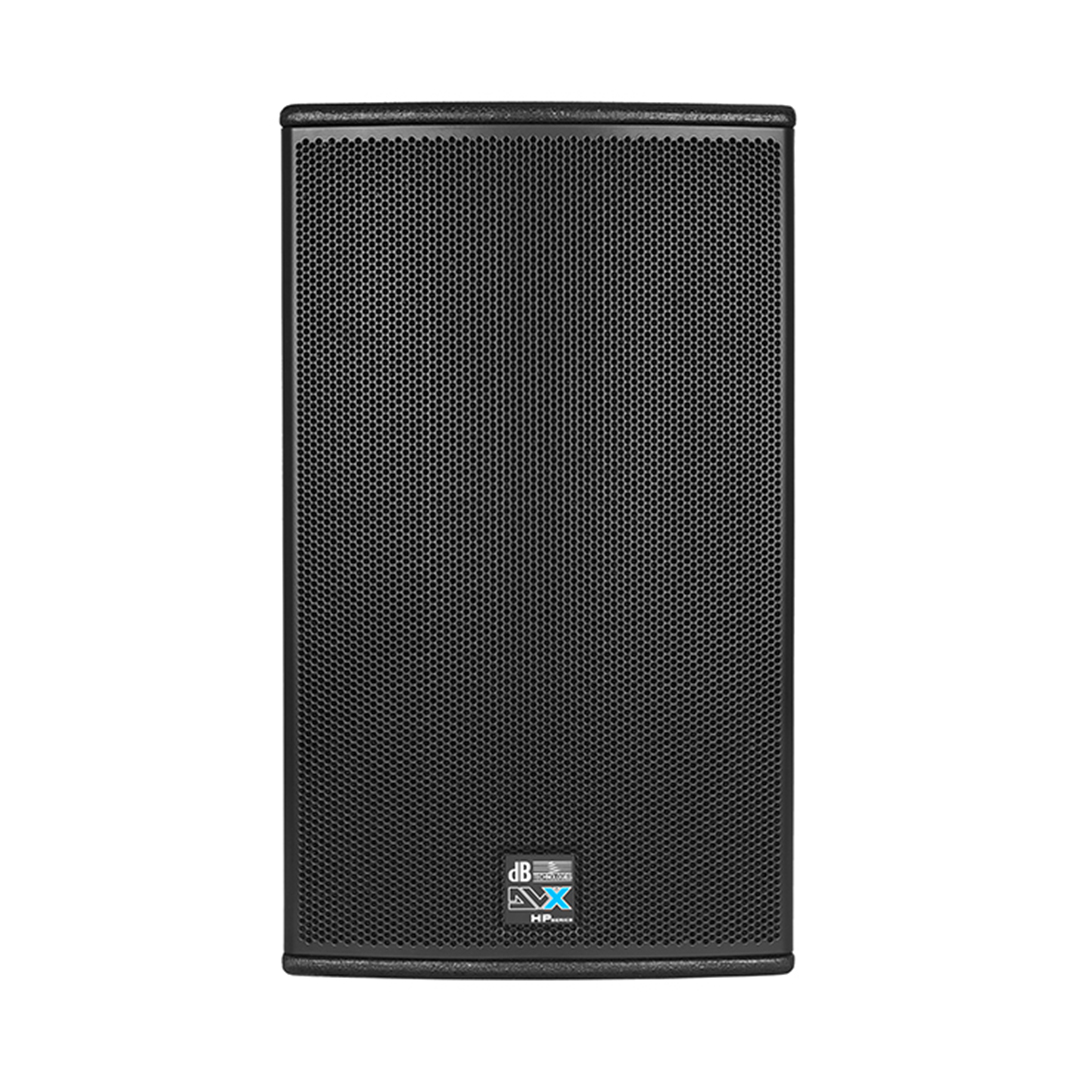

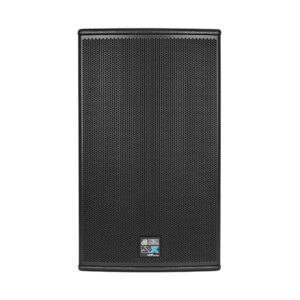

DB Technologies DVX D12 HP
Loaded with high-quality speakers, it provides high-end audio performance with maximum reliability and minimum power compression.
A 1.4” driver with a 2.5” voice coil designed to handle highest loads renders vocals with amazing accuracy across medium-to-longer throw distances.

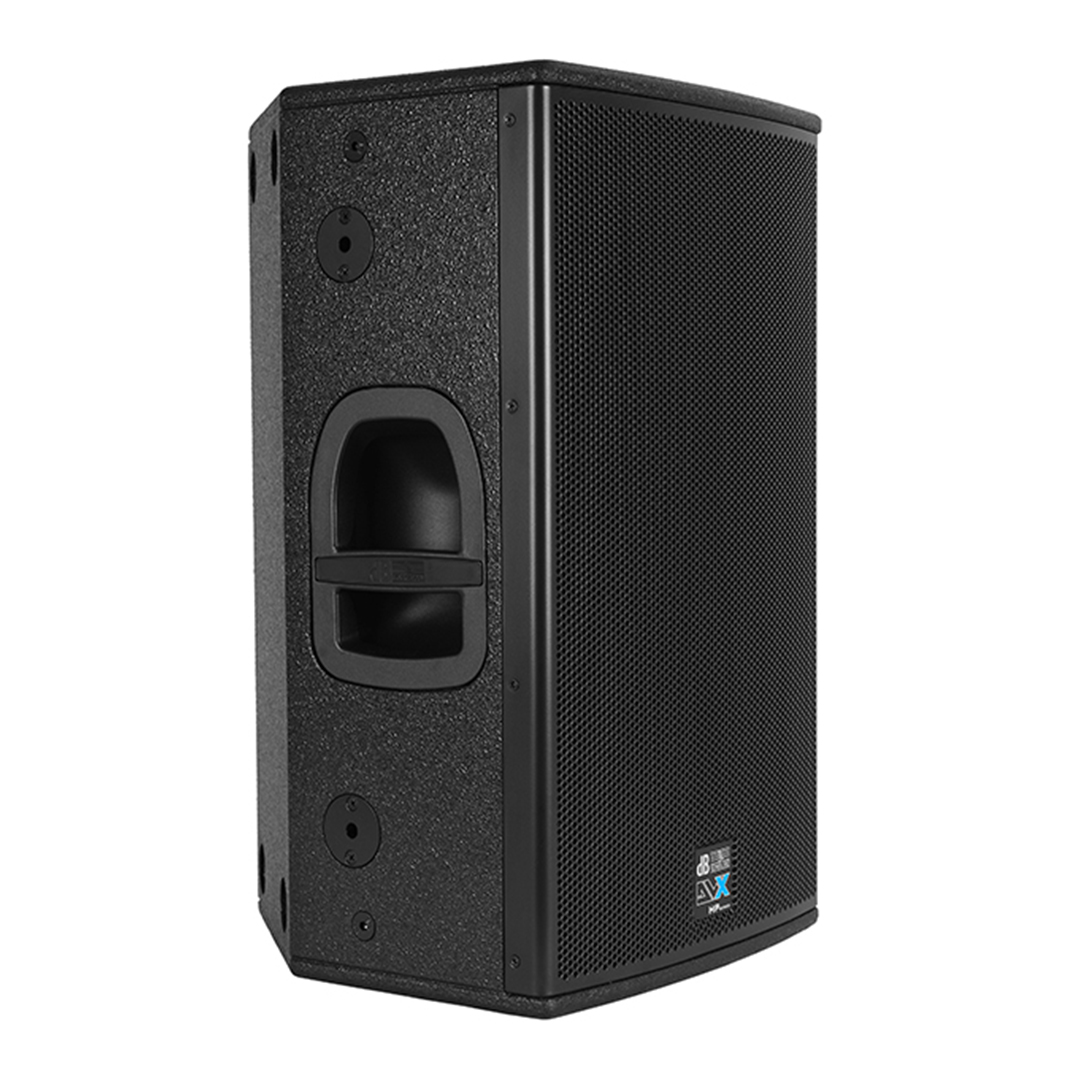

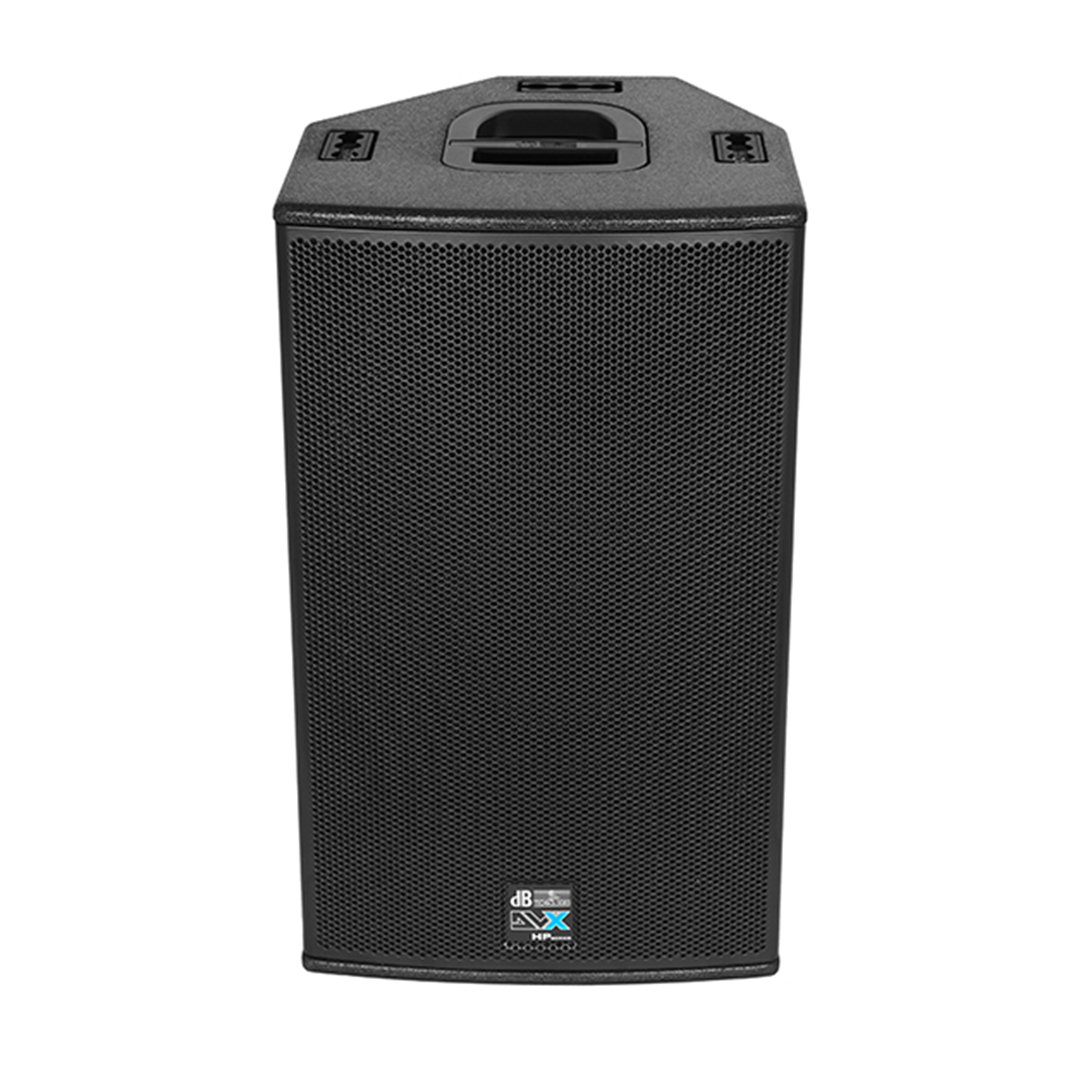

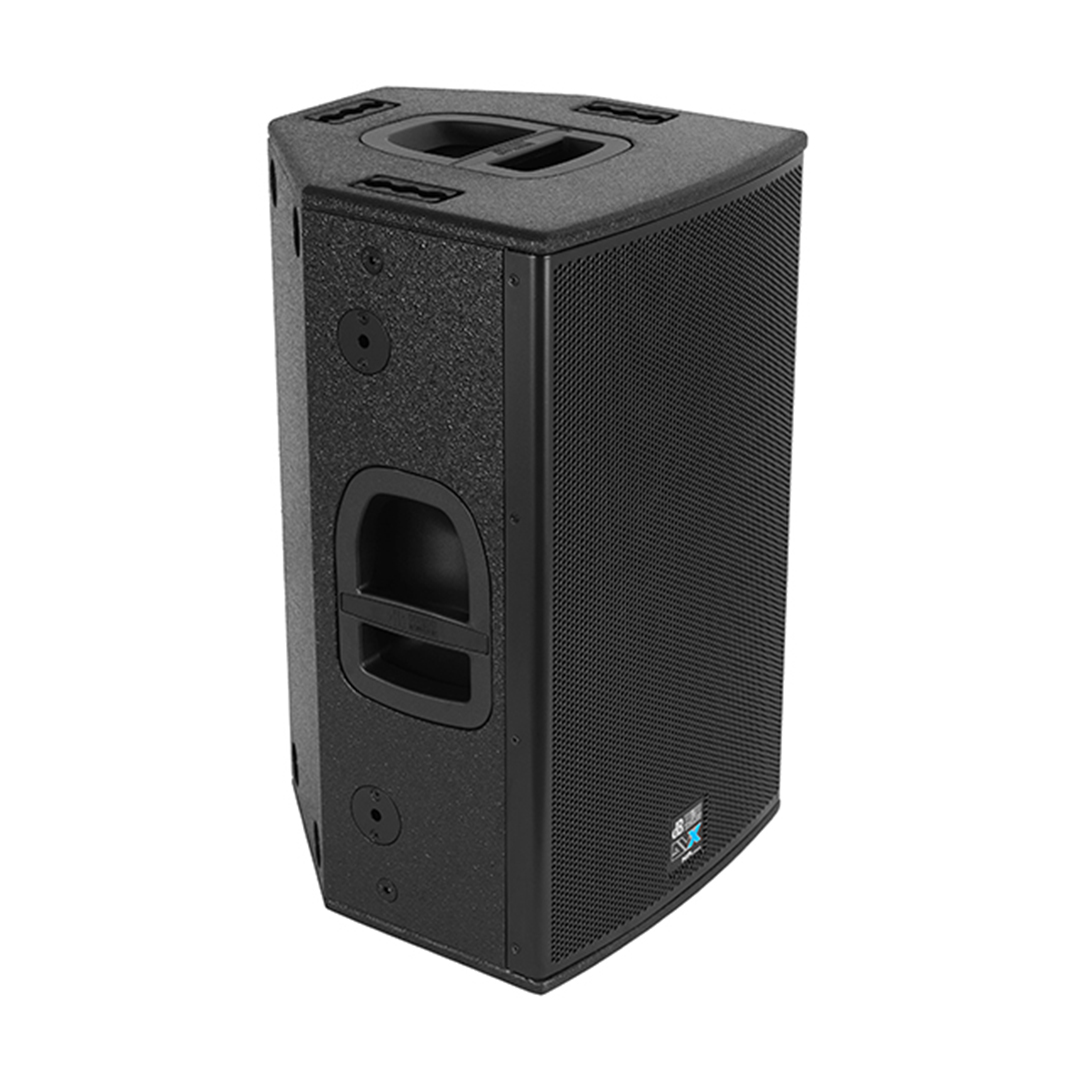

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

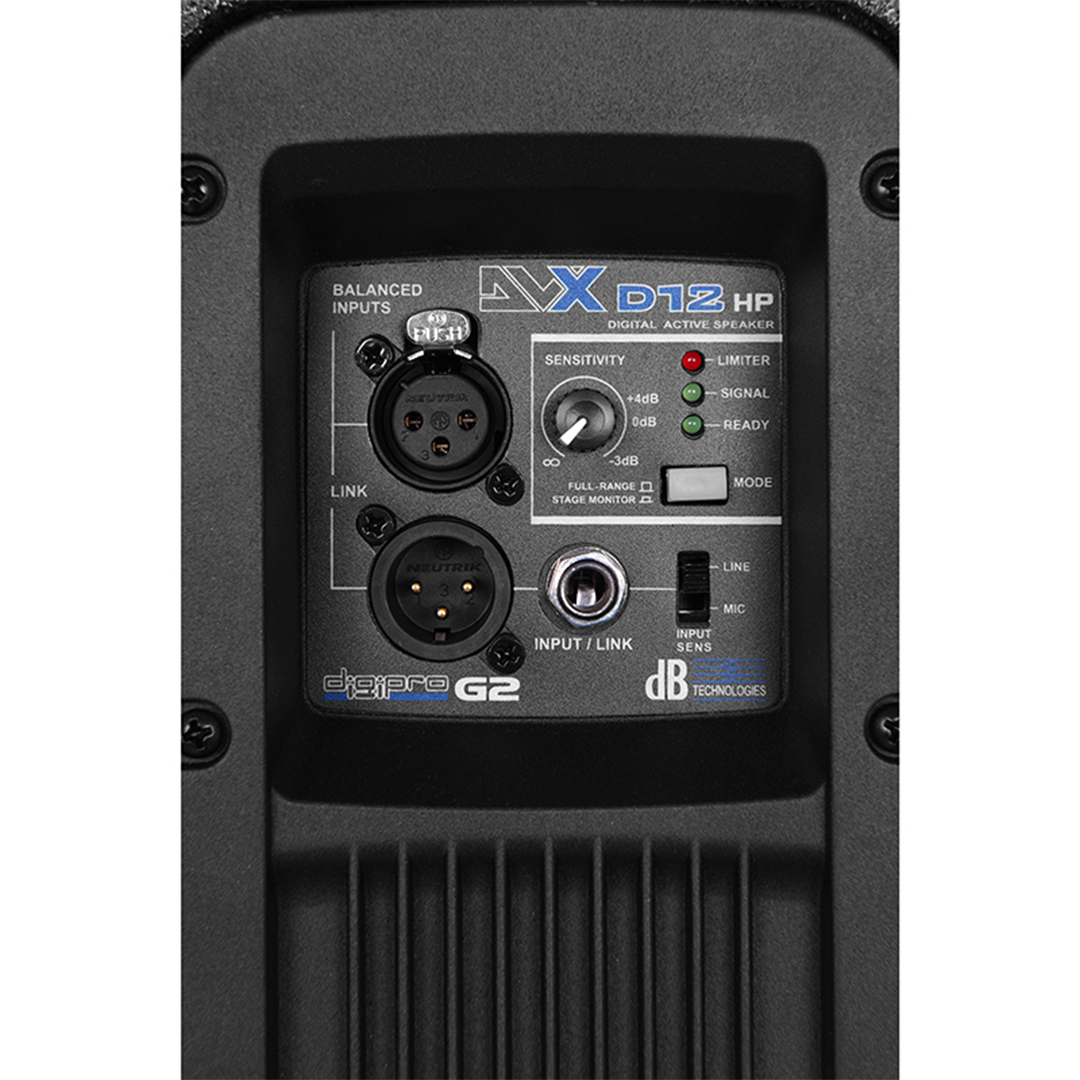

The onboard controller even provides a special monitor setup that specifically adapts the enclosure’s performance for use as a monitor.
This DSP also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
The DVX D12 HP is the perfect match for the DVA Series subwoofers.
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 55 – 20.000 Hz
Frequency Response [ /- 3dB] 68 – 19.000 Hz
Max SPL 131 dB
HF 1.4 “
Voice Coil HF 2.5 “
Directivity 60×40 °
Horn CD Horn Aluminium
Rotatable Horn YES
LF 12 “
Voice Coil LF 3 “
Amplifier
Amp Technology Digipro® G2
Amp Class Class D
Power RMS 700 W
Peak Power 1400 W
Cooling Convection
Processor
Controller DSP 24 Bit/48 kHz
System Presets FOH, Monitor
Limiter RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF 1350 Hz
Slope MF-HF 24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Design Multifunctional
Angles Up Monitor use 45 °
Rigging Points 6x M10
4x Quick-Relase Pins
Flytracks 3x on top 3x on bottom
4x Quick-Relase Pins
Flytracks 3x on top 3x on bottom
Width 370 mm (14.8 in)
Height 625 mm (25 in)
Depth 395 mm (15.8 in)
Weight 27.5 kg (60.63 lbs)
