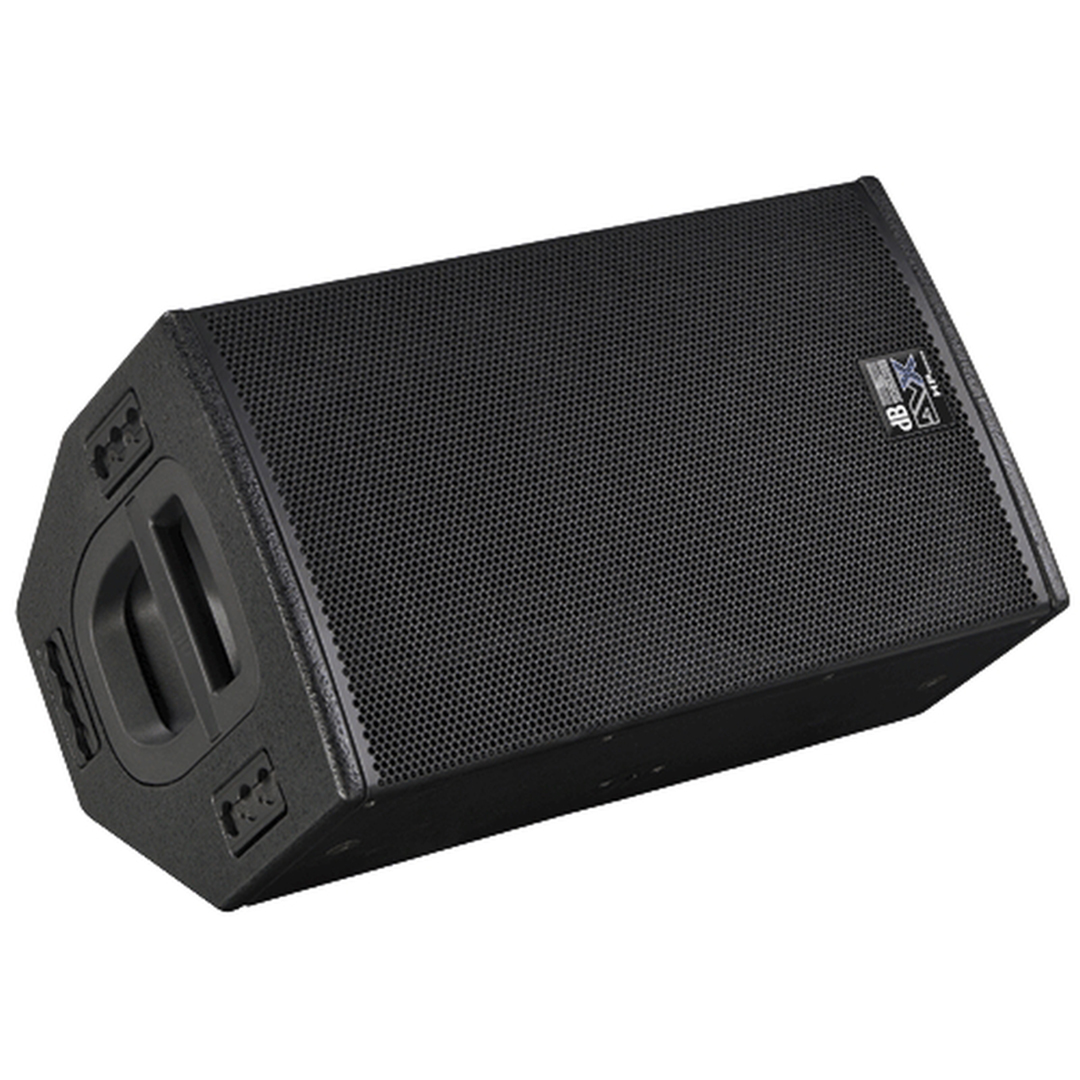

DB Technologies DVX D10 HP
Equipped with a high-quality 10″ woofer and a 1″ compression driver with rotatable CD horn, the DVX D10 HP is fullrange enabled and can be deployed for many applications without an added subwoofer.
The housing’s multifunctional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
Combining the DVX D10 with a DVA series subwoofer creates remarkably powerful yet compact satellite systems.
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 70 – 20.000 Hz
Frequency Response [ /- 3dB] 85 – 19.000 Hz
Max SPL 127 dB
HF 1 “
Voice Coil HF Titanium 1.7 “
Directivity 90×70 °
Horn CD Horn Aluminium
Rotatable Horn YES
LF 10 “
Voice Coil LF
Amplifier
Amp Technology Digipro® G2
Amp Class Class D
Power RMS 600 W
Peak Power 1200 W
Cooling Convection
Processor
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF 1600 Hz
Slope MF-HF 24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Multiplex plywood
Housing Design Multifunctional
Angles Up Monitor use 45 °
Rigging Points 6x M10
2x 10mm Quick Release for DTF-bracket
2x 10mm Quick Release for DTF-bracket
Flytracks 3x on top 3x on bottom
Width 290 mm (11.6 in)
Height 510 mm (20.4 in)
Depth 310 mm (12.4 in)
Weight 15.8 kg (34.83 lbs)
