Description

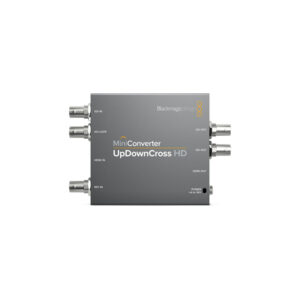

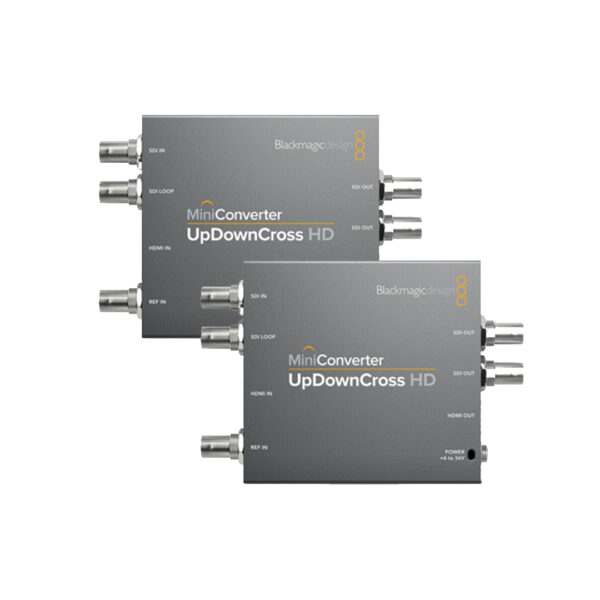

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!
Price
$155
Connections
SDI Video Inputs
1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.
HDMI Video Input
1 x HDMI type A connector.
SDI Video Outputs
1 x loop out and 2 x outputs
HDMI Video Output
HDMI type A out. Output supports EDID of the monitor.
SDI Rates
270Mb, 1.5G, 3G.
Reference Input
Black burst and Tri‑Sync for SD & HD.
Multi Rate Support
Auto detection of HD or standard definition SDI inputs.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, ITU‑R BT.656 and ITU‑R BT.601.
SDI Metadata Support
Timecode and closed captioning.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 3G‑SDI.
Format Conversion
Video Conversion
Convert any SD and HD input to “720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60”
Computer Scaling
Scale DVI resolutions 640×480, 800×600, 1024×768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Software
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.14 Mojave,Mac 10.15 Catalina or later.
Windows 8.1 and 10.Settings Control
Mini Switches
Power Requirements
Power Supply
12V universal power supply included with international socket adapters for all countries.
Power Consumption
5W
Operational Voltage Range
6 to 36 Vdc.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
